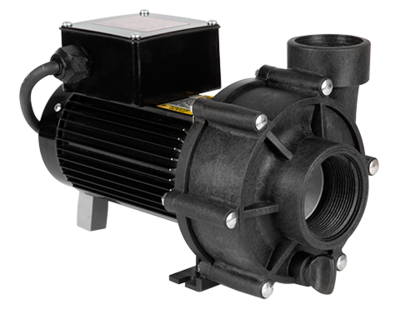

These end-suction centrifugal pumps are designed for placement at the perimeter of the pond, eliminating the need for wading into the pond to service the pump.

The pump housing is injection molded, corrosion resistant, thermoplastic and is mounted to custom built motor.

The impeller is glass-filled Noryl®.

Models 1740 and 2760

• have 2" FNPT suction and 1" FNPT discharge.
• They are pre-wired with an 8' cord and 115v plug.

Models 4260 and 5820

• have 1-1/2" FNPT suction and discharge.
• Prewired for 115v, but suitable for 115v or 230v operation.

FRA224:

• 1740 gph @ 5';
• 1/8 hp;
• 92 watts;
• 1.1 amps;
• max lift 11'

FRA225:

• 2760 gph @ 5';
• 1/8 hp;
• 132 watts;
• 1.3 amps;
• max lift 12'

FRA227:

• 5820 gph @ 5';
• 1/4 hp;
• 335 watts;
• 3.0 amps;
• max lift 22'

Product Manual
